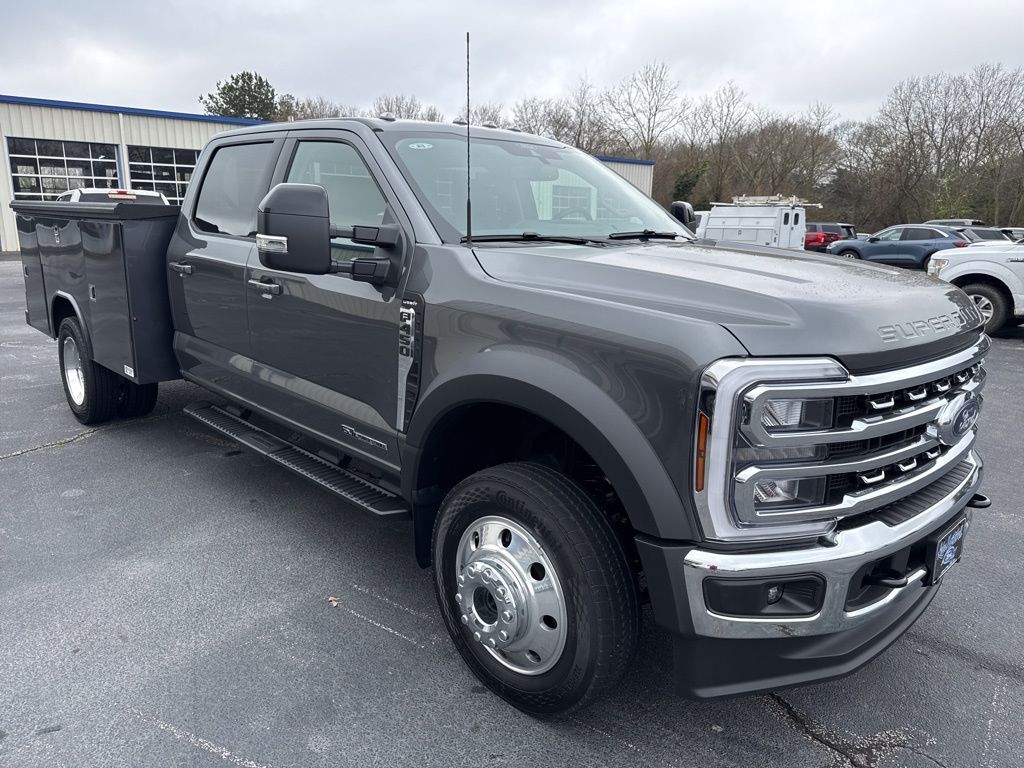

New 2026 Ford Super Duty F-450 DRW

VIN: 1FD0W4HT7TED41502

Stock #: F41502

$88,885

Vehicle Details

Trans.:Automatic

Drivetrain:Four Wheel Drive

Engine: 6.7L 8 Cylinder Engine

Fuel Type:Diesel

Ext. Color:CARBONIZED GRAY

Int. Color:5B

View Window Sticker

MSRP

$88,885

people recently viewed this vehicle*

Description

BLACK/ONYX, FRONT ACTIVEX TRIMMED 40/CONSOLE/40 SEATS
ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20
CARBONIZED GRAY METALLIC

Standard Features

Vehicle Location

Lake Hartwell Ford
1435 E Main St
Royston, GA 30662

*Number of views in last 30 days

Lake Hartwell Ford

Departments

Contact Us

Showroom: 1435 E. Main Street Royston, GA 30662-7108

Although every reasonable effort has been made to ensure the accuracy of the information contained on this site, absolute accuracy cannot be guaranteed. This site, and all information and materials appearing on it, are presented to the user “as is” without warranty of any kind, either express or implied. All vehicles are subject to prior sale. Price does not include applicable tax, title, and license charges. ‡Vehicles shown at different locations are not currently in our inventory (Not in Stock) but can be made available to you at our location within a reasonable date from the time of your request, not to exceed one week.

Technical Specifications

Vehicle Name: Ford Super Duty F-450 DRW
Body Style: SD Crew Cab
Body Code: H
Drivetrain: Four Wheel Drive
Passenger Capacity: 6
Base Curb Weight: 8146
Gross Axle Wt Rating – Front: 5200, 5600, 6000, 6000, 6500, 6500, 6500, 7000, 7000, 7000, 7000, 7500, 7500, 7500
Gross Axle Wt Rating – Rear: 12880
Curb Weight – Front: 4209
Curb Weight – Rear: 3189
Gross Vehicle Weight Rating Cap: 15000, 16000, 16500
Gross Combined Wt Rating: 30000, 34500, 35000, 39000
Dead Weight Hitch – Max Trailer Wt.: 5000
Dead Weight Hitch – Max Tongue Wt.: 500
Wt Distributing Hitch – Max Trailer Wt.: 17500
Wt Distributing Hitch – Max Tongue Wt.: 1750
Fifth Wheel Hitch – Max Trailer Wt.: 21200, 24900, 29400
Fifth Wheel Hitch – Max Tongue Wt.: 5300, 6225, 7350
Maximum Trailering Capacity: 17500
Engine Order Code: 99T
Engine Type: Intercooled Turbo Diesel V-8
Displacement: 6.7 L/406
Fuel System: Diesel Direct Injection
SAE Net Horsepower @ RPM: 330 @ 2200
SAE Net Torque @ RPM: 950 @ 1800
Trans Order Code: 44G
Trans Type: 10
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.62
Second Gear Ratio (:1): 2.92
Third Gear Ratio (:1): 2.13
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.28
Reverse Ratio (:1): 4.70
Trans Power Take Off: Yes
Trans PTO Access: Yes
Transfer Case Model: Electronic
Transfer Case Power Take Off: Yes
Cold Cranking Amps @ 0° F (Primary): 750
Cold Cranking Amps @ 0° F (2nd): 750
Maximum Alternator Capacity (amps): 190, 190 & 160, 250 & 150, 250 & 160, 250
Engine Oil Cooler: None
Suspension Type – Front: Other
Suspension Type – Rear: Leaf
Spring Capacity – Front: 5200, 5600, 6000, 6000, 6500, 6500, 6500, 7000, 7000, 7000, 7000, 7500, 7500, 7500
Spring Capacity – Rear: 12880
Axle Type – Front: Non-Independent
Axle Type – Rear: Rigid Axle
Axle Capacity – Front: 7000, 7500
Axle Capacity – Rear: 12880
Axle Ratio (:1) – Front: 4.10, 4.30, 4.88
Axle Ratio (:1) – Rear: 4.10, 4.30, 4.88
Front Tire Order Code: TGJ, TGK, TGM
Rear Tire Order Code: TGJ, TGK, TGM
Spare Tire Order Code: , 512
Front Tire Size: LT225/70SR19.5
Rear Tire Size: LT225/70SR19.5
Spare Tire Size: , Full-Size
Front Tire Capacity: 7500
Rear Tire Capacity: 15000
Revolutions/Mile @ 45 mph – Front: 645, 647
Revolutions/Mile @ 45 mph – Rear: 645, 647
Front Wheel Size: 19.5 X 6
Rear Wheel Size: 19.5 X 6
Spare Wheel Size: , Full-Size
Front Wheel Material: Forged Aluminum, Steel
Rear Wheel Material: Forged Aluminum, Steel
Spare Wheel Material: , Steel
Steering Type: Re-Circulating Ball
Turning Diameter – Curb to Curb: 51.1
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc – Front (Yes or ): Yes
Disc – Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 15.4
Rear Brake Rotor Diam x Thickness: 15.8
Drum – Rear (Yes or ):
Rear Drum Diam x Width:
Fuel Tank Capacity, Approx: 26.5, 40
Aux Fuel Tank Capacity, Approx: , 26.5
Front Head Room: 40.8
Front Leg Room: 43.9
Front Shoulder Room: 66.7
Front Hip Room: 62.5
Second Head Room: 40.4
Second Leg Room: 43.6
Second Shoulder Room: 65.9
Second Hip Room: 64.7
Wheelbase: 179
Length, Overall: 265.2
Width, Max w/o mirrors: 80
Height, Overall: 82.6
Overhang, Front: 38.3
Overhang, Rear w/o bumper: 47.2
Cab to Axle: 60
Cab to End of Frame: 107.2
Frame Width, Rear: 34.2
Ground Clearance, Front: 8.6
Ground Clearance, Rear: 8.6
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Country of Origin: United States Ford Incomplete Vehicle
Model Group: F-Series Chassis
Vehicle Segment: Chassis
Vehicle Type: Crew Cab
Body Cab Style: Crew Cab
Engine Displacement Units: 6.7, 7.3, 7.3
Engine Camshaft: OHV, OHV, OHV
Engine Block Type: iron, iron, iron
Engine Cylinder Count: 8, 8, 8
Engine Valve Count: 2, 2, 4
